Collection MINI-Split Heat Pumps

3MXM24AVJU9

High-efficiency inverter driven swing compressor
12 Year limited parts warranty with online registration

• Equipment

• 2.0-Ton R-32, 3-Port Heat Pump, Ductless ODU

• Product Family3MXM_AVJU9

• Family Description2.0 Ton 3-Port Heat Pump

• Unit TypeOutdoor

• Product Class - (PIM)Multi-Split Heat Pump

• Tonnage2.0

• Product Benefits12 Year limited parts warranty with online registration

• Product Features StandardHigh-efficiency inverter driven swing compressor

• Compressor TypeSwing

• Airflow Rate High Cooling2462

• Air Flow Rate (High) - Heating2140

• Air Flow Rate (Low) - Cooling1939

• Air Flow Rate (Low) - Heating1070

• Compressor StagesInverter

• Cooling Capacity - (Rated)23000

• Heating Capacity - (Rated)24000

• Power Voltage208-230

• Min. Circuit Amps19.9

• Power Phase1

• Power Frequency60

• Dimensions - (Unit Depth)12-5/8

• Dimensions - (Unit Width)34-1/4

• Dimensions - (Unit Height)29-1/2

• Weight - (Unit)140.0

• Refrigerant TypeR-32

RXC12AXVJU

10 year limited parts warranty with online registration

• Equipment

• Daikin Entra R-32 Heat Pump Ductless ODU 1 Ton

• Outdoor

• 0.75 - 2 Ton 17 Series Heat Pump Up to 17 SEER / 9 HSPF

2MXM18AVJU9

Multi Zone Standard Efficiency Night Quiet Mode Automatic Defrost Quick Warming Function Automatic Defrosting Priority Room Setting Cool/Heat mode lock Self Diagnosis Wiring error check function Anti-corrosion treatment of outdoor heat exchanger
12 Year registered warranty PAM control Energy efficient operation Quiet outdoor unit operation Unit perfroms self diagnosis and indicates using LED lights

• Equipment

• R-32 1.5-Ton, 2-Port Heat Pump, Ductless ODU

• Product Family: 2MXM_AVJU9

• Family Description: 1.5 Ton 2-Port Heat Pump

• Unit Type: Outdoor

• Product Class - (PIM): Multi-Split Heat Pump

• Tonnage: 1.5

• Product Benefits: 12 Year registered warranty PAM control Energy efficient operation Quiet outdoor unit operation Unit perfroms self diagnosis and indicates using LED lights

• Compressor Type: Swing

• Airflow Rate High Cooling: 2112

• Air Flow Rate (High) - Heating: 2140

• Air Flow Rate (Low) - Cooling: 1911

• Air Flow Rate (Low) - Heating: 1561

• Compressor Stages: Inverter

• Cooling Capacity - (Rated): 17200

• Heating Capacity - (Rated): 18500

• Power Voltage: 208-230

• Min. Circuit Amps: 15.6

• Power Phase: 1

• Power Frequency: 60Hz

• Dimensions - (Unit Depth): 12-5/8"

• Dimensions - (Unit Width): 34-1/4"

• Dimensions - (Unit Height): 29-1/2"

• Weight - (Unit): 127.0

• Refrigerant Type: R-32

RXQ12ASBU9 (R32)

Swing Compressor Inverter system Reluctance DC Motor PAM Control Automatic Defrosting Anticorrossion treatment on Heat Exchanger
Quiet Outdoor Unit Long Compressor Life Saves on Energy cost Efficient operation

• Equipment

• Outdoor

• 0.75-1 Ton Daikin Oterra 115V Heat Pump

RXM18WVJU9

Inverter Technology delivers precise temperature control and superior energy efficiency
12 year limited parts and compressor warranty

• Equipment

• Daikin ATMOSPHERA, Heat Pump, Ductless ODU

• Outdoor

• 0.75 - 2.0 Ton Heat Pump Outdoor Unit

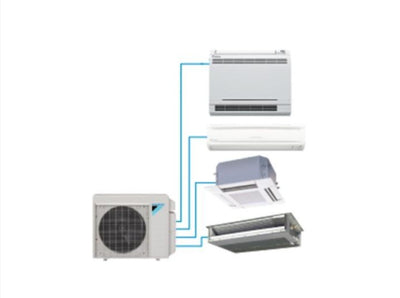

Daikin MXS Series Multi-Zone (2, 3, 4 or 5 zones) outdoor unit

Daikin's Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two, three, or four indoor units to a single outdoor unit, over 1,000 combinations are possible with the choice of wall mount units, slim duct units, ceiling cassette units or a combination. Systems offer energy efficiency levels up to 20.2 SEER and 12.5 HSPF for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split Systems are the smart, reliable solution for your home.

• ​SEER Up to 20.2

• HSPF Up to 12.2

• R-410A Refrigerant Compatible

Features

• World-renowned Daikin Inverter Variable Speed compressor technology

• Space-saving design and precision temperature control for individual rooms

• Cooling Range 14°- 115°F

• Heating Range -5 - 60°F

• Quick and easy installation

• Quiet operation

4MXM36AVJU9

High-efficiency inverter driven swing compressor
12 Year limited parts warranty with online registration

• Equipment

• 3.0-Ton R-32, 4-Port Heat Pump, Ductless ODU

• Brand Daikin

• Product Family4MXM_AVJU9

• Family Description3.0 Ton R-32 4-Port Heat Pump

• Unit TypeOutdoor

• Product Class - (PIM)Multi-Split Heat Pump

• Tonnage3.0

• Product Benefits12 Year limited parts warranty with online registration

• Product Features StandardHigh-efficiency inverter driven swing compressor

• Compressor TypeSwing

• Airflow Rate High Cooling2896

• Air Flow Rate (High) - Heating2518

• Air Flow Rate (Low) - Cooling2055

• Air Flow Rate (Low) - Heating1070

• Compressor StagesInverter

• Cooling Capacity - (Rated)34200

• Heating Capacity - (Rated)34600

• Power Voltage208-230

• Min. Circuit Amps24.1

• Power Phase1

• Power Frequency60

• Dimensions - (Unit Depth)12-5/8

• Dimensions - (Unit Width)34-1/4

• Dimensions - (Unit Height)29-1/2

• Weight - (Unit)142.0

• Refrigerant TypeR-32

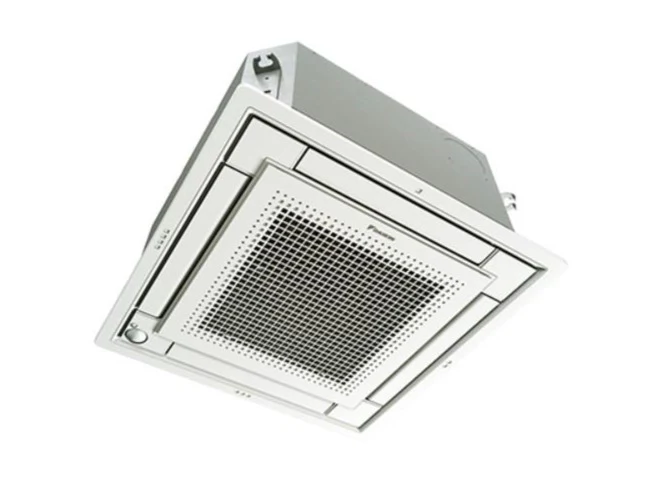

Daikin VISTA Ceiling Cassette Multi-Zone indoor unit

VISTA is a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.

• 2x2 for seamless integration into ceiling tiles leaving only 5/16 inches

• Remarkable blend of iconic design and engineering excellence

• Fresh air integration possible

Compressor TypeInverter

Price Tier      $$

Daikin FTXS/CTXS Multi-Zone indoor unit

FTXS is a feature-packed, intelligent wall mounted system that includes intelligent eye for energy savings and horizontal auto swing outlet fins for 3-D airflow comfort.

• Stylish front panel blends easily with the wall and matches all interior decors

• Dry program allows humidity levels to be reduced without variations in room temperature

• Intelligent Eye function reduces heating or cooling operation during unoccupied periods
